Purpose of the flight and payload description
The Lightning Balloon System was developed by Aerostar as a tactical zero-pressure balloon platform designed for rapid deployment and flexible, short-duration missions in diverse environments. It can operate at altitudes ranging from 50,000 to 78,000 feet, with potential extension to a range between 45,000 and 110,000 feet, and is capable of carrying user payloads weighing between 20 to 45 pounds.
In the image at left we can see a scheme of the system (click to enlarge). It allows for maneuverable flight lasting between one to three days and is designed to be launched by a small team of just two personnel from a truck, emphasizing its portability and ease of use. The payload compartment measures approximately 13 by 16 by 18 inches, although larger configurations may be accommodated by special request.
The Lightning system integrates with Aerostar's Thunderstorm software suite, providing a unified platform for command, control, and mission planning compatible with all Aerostar balloon systems. The system is engineered for versatility and has been successfully tested in a variety of challenging environments including austere, maritime, and cold weather settings, and can operate with hydrogen gas.
Payloads are supported with power at +28 volts, offering multiple rails each capable of supplying up to 150 watts, with a total maximum output of 300 watts. Communications capabilities include both Beyond Line-of-Sight (BLOS) and Line-of-Sight (LOS) options via Iridium and optional high-bandwidth mesh or satellite communications. Real-time GPS/INS data is accessible via Ethernet, enabling precise tracking and control.
Footage showing the drone deployment
Details of the balloon flight
Balloon launched on: 3/16/2026 at 21:50 UTC
Launch site: Naval Air Station Tillamook, Oregon, US
Balloon launched by: Aerostar
Balloon manufacturer/size/composition: Zero Pressure Balloon
Flight identification number: HBAL794
End of flight (L for landing time, W for last contact, otherwise termination time): 3/16/2026 at 22:05 UTC
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 15 m

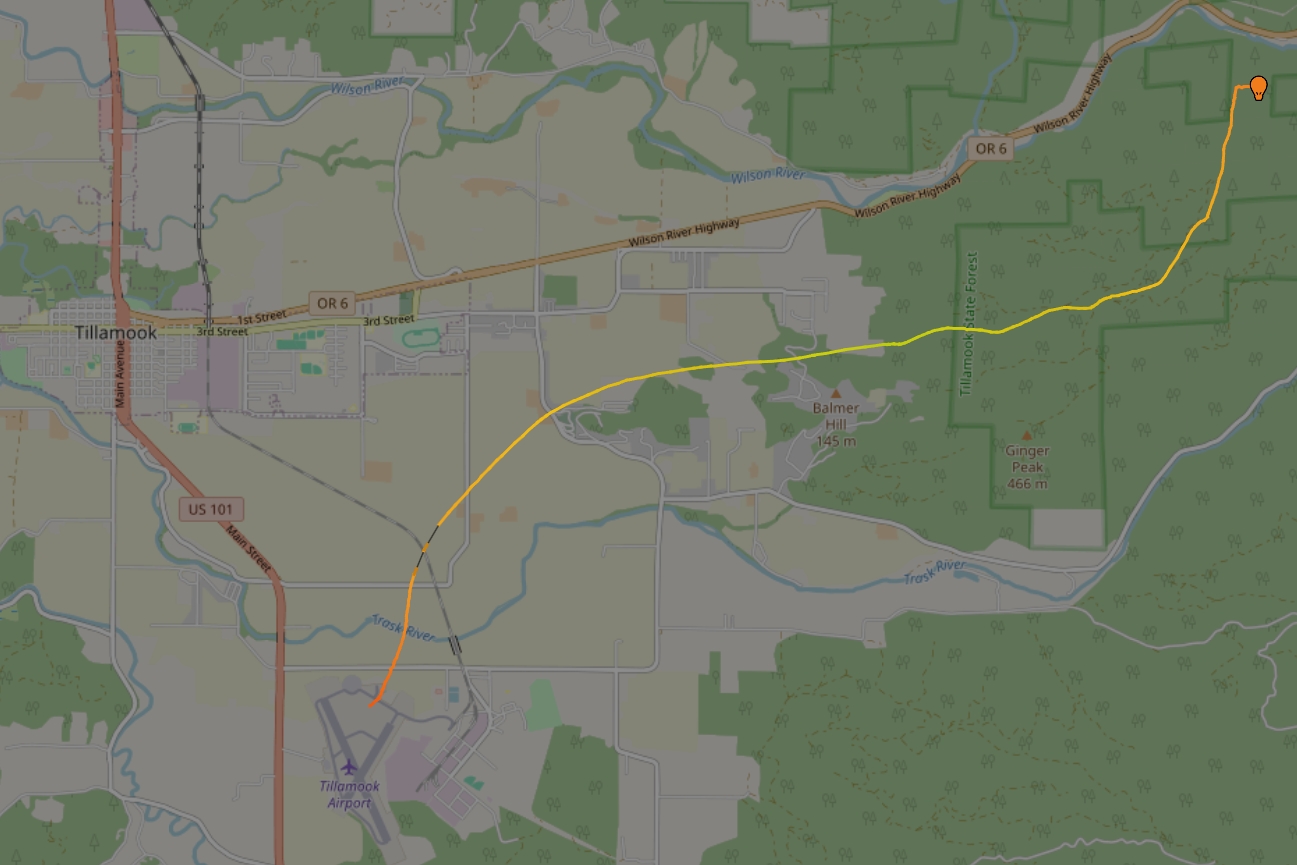

Landing site: 10 miles NE of Tillamook, Oregon, US
The very brief flight served to deploy from the balloon an Unmanned Aircraft System (UAS) developed by Valinor Enterprises, known as Condor. The UAS is backpack-portable and designed to be carried and deployed by individual soldiers in the field without dedicated ground support equipment. It is high-speed skid steer capable, with a maximum range of 40 kilometers (25 miles), a top speed of 161 kilometers per hour (100 miles per hour), an endurance of 25 minutes, and a maximum takeoff weight of 22.49 pounds.
The system features an open architecture software framework, enabling compatibility with third-party command-and-control systems. Its modular hardware design allows rapid reconfiguration for different payloads and mission requirements, including reconnaissance and targeting support roles. Condor also supports autonomous long-range operations, executing pre-programmed mission profiles without continuous operator input, enabling operations in environments where communications may be degraded or denied. This reduces reliance on persistent data links and lowers operator workload.
In terms of deployment, high-altitude balloon deployment is one of the options in which the drone is released from an elevated platform. This extends the system's effective operational reach and reduces its acoustic and visual signature compared to ground-based launches. Following release, the Condor stabilizes automatically and transitions into controlled flight.
