Purpose of the flight and payload description

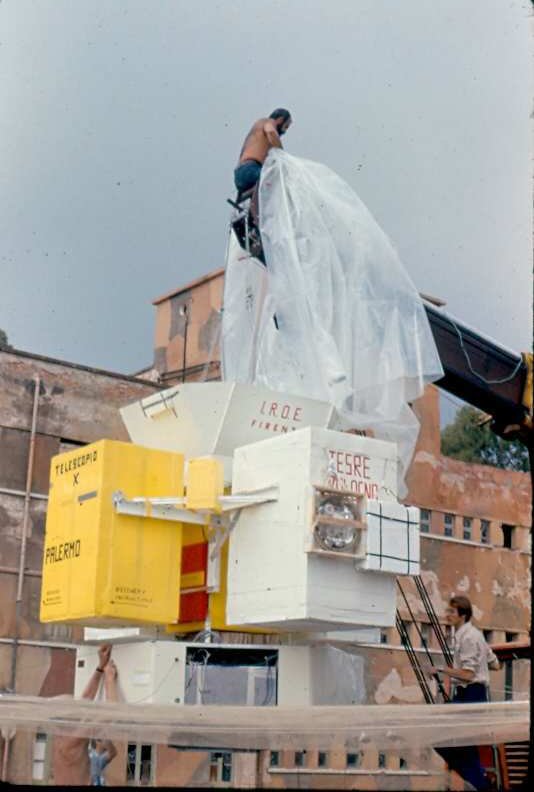

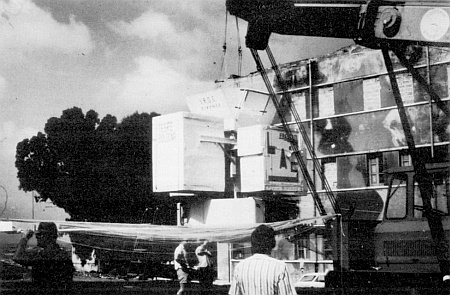

HRX-76 acronym of Hard X-Rays 1976 was the first transatlantic mission performed using a multi-instrumented gondola with several experiments in the domain of Hard X-Rays, Gamma rays, Infrared Astronomy and biology aported by Italian Universities and Research Institutes exclusively. In the image at left and right we can see images of the gondola before flight.

The main experiment onboard was developed by Laboratorio di Tecnologie e Studio delle Radiazioni Extraterrestri in Bologna. It was composed by two identical and independent hard X-ray detectors allocated with their axes of view directed along the vertical. Each detector was made up of a cylindrical NaI(Tl) crystal 20 cm in diameter and 1.27 cm thick, optically coupled through three light pipes to three photomultipliers. Semiactive collimation, obtained by Pb shields surrounded by anticoincidence plastics cintillators gave a triangular field of view of 14 degreees FWHM. The effective area of the full system was 525 square centimeters while the nominal energy range was between 20 and 300 keV with a poor resolution due to non uniformity in light collection. The telemetry bit rate was 96 bit/sec. Counts from each detector were continuously and separately transmitted in two energy channels (20~150 and 150~300 keV) with a time resolution of 0.83 s. Sixty-channel pulse height spectra from both detectors were telemetered in alternative sequence every 106.6 seconds. With the same time resolution overflow (> 300 keV) and anticoincidence plastic scintillator counts were also continuously transmitted. Atmospheric pressure and data from omega system were also continuously transmitted, together with other housekeeping data.

Another experiment which was also onboard was developed by the Laboratorio di Astrofisica Spaziale, Frascati. It comprised a large-area spectroscopic proportional chamber of 800 cm2 filled with high-pressure xenon (at 4 atmospheres) with C02 quenching which was sensitive to hard X-rays in the energy range 25-190 keV. The total sensitive volume of the chamber (30 x 30 x 10.5 cm3) was divided by grounded wires and planes into 15 independent cells, arranged in three planes, with five anodes each. Charge collected from a single anode was independently preamplified and amplified, then was anticoincided to reject pulses due to charged particles and high-energy, and finally pulse-shape analyzed. Signals were processed into 15 energy channels and counting rates were transmitted through the HF link. A square cells collimator limited the field of view to 14° FWHM. A quite complete triangular response in the range of the experiment was achieved by employing a sandwich structure made of a lead layer 300 microns thick between two copper strips 100 microns thick, employed to trap lead fluorescence.

Additional experiments were also provided by IROE-CNR (Florence), IFCAI-CNR (Palermo) plus a few small piggy-back instruments. All these experiences were mounted in a unstabilized gondola which along the flight service module and ballast needed for the oceanic traverse had a total weight at launch of 1.500 kg.

Details of the balloon flight

Balloon launched on: 7/29/1976 at 19:30 utc
Launch site: Base di Lancio Luigi Broglio, Trapani, Sicily, Italy
Balloon launched by: National Scientific Balloon Facility (NSBF)
Balloon manufacturer/size/composition: Zero Pressure Balloon Winzen - 595.214 m3 (15.24 microns)
Flight identification number: 125N
End of flight (L for landing time, W for last contact, otherwise termination time): 8/1/1976 at 22:30 utc (w)
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 3 d 3 h
Landing site: Radio contact with the balloon lost after 75 hours aloft. Payload never recovered.
Payload weight: 1814 kgs

The balloon was launched by dynamic method from the balloon launch base of Trapani-Milo, in Sicily, Italy at 19:30 utc on July 29, 1976. After a nominal ascent the balloon reached a float altitude of 4.5 mbar. The entire flight had an estimated duration of 5 days. Unfortunately the on-board navigation system failed soon after the launch, and the path of the balloon was reconstructed with suitable accuracy only during the first day by radar positioning from Sardinia. The following 2 days the longitude of the balloon was monitored through sunsets and sunrises as seen from the on-board Sun sensor. Althought the original plan was to travel to a site in the United States crossing the Mediterranean and the Atlantic Ocean, after the third day contact with the balloon was lost. HF positions were obtained for a short while as the balloon approached the U.S., but the HF signal was lost when the balloon was approximately 300 miles off shore of the U.S. All further FCC, radar, and visual attempts to locate the balloon failed and it was presumed down in the Atlantic.

External references

Images of the mission

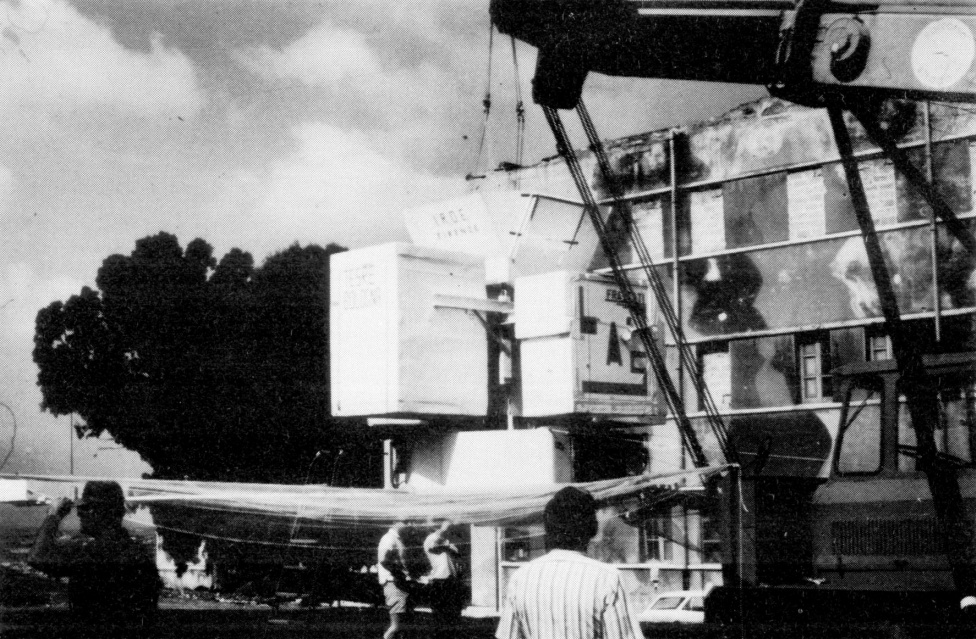

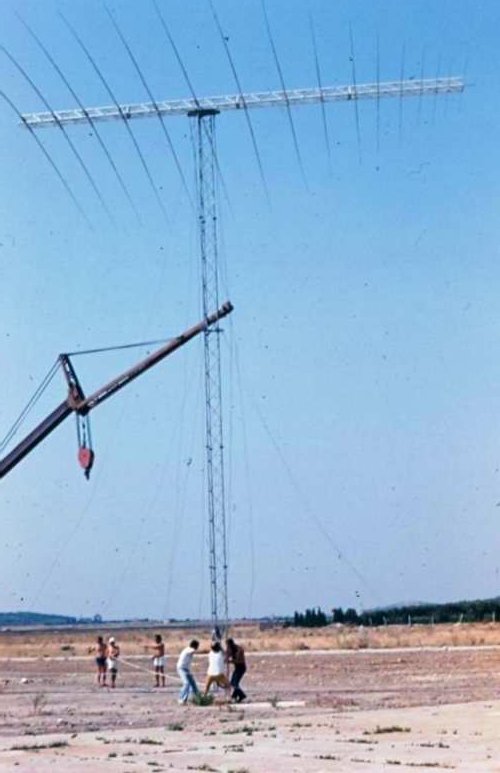

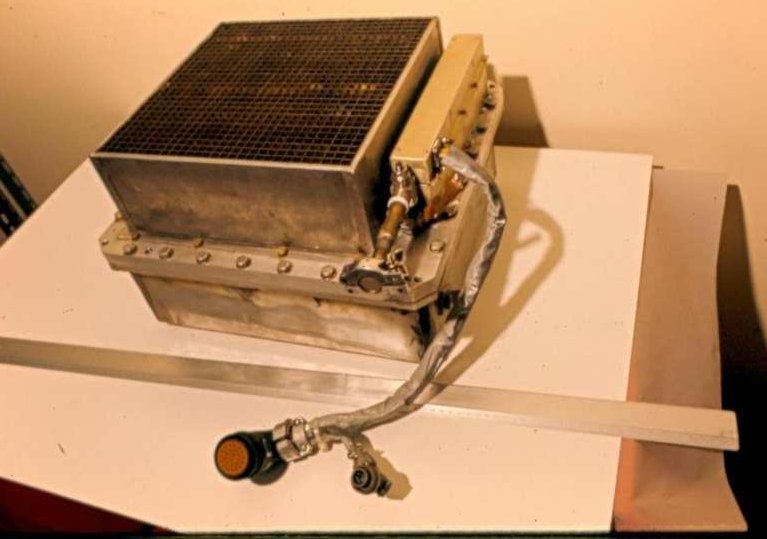

The man on top the crane is Dr. Malavasi, Director of the Trapani-Milo Facility in 1976. The pink net, visible below the payload, is the virtual-ground of about 8 m diameter necessary to operate the HF transmitter during the flight (Image: F. Giovannelli) Mounting at Trapani-Milo base of the HF receiving antenna for the low bit-rate scientific data transmission system used on the HXR-76 mission (Image: F. Giovannelli) View of the HXR-76 high pressure multiwire proportional counter operative in the range 15-150 keV (Image: F. Giovannelli) View of the HXR-76 LAS experiment, an array of two Hard-X ray MWPC being tested before flight (Image: F. Giovannelli) Inflation of the balloon for the HXR-76 mission (Image: P. Ubertini)
