Purpose of the flight and payload description

This flight was part of the developmental work carried out in the context of a program started in 1957 by the Balloon Research Branch of the Research Instrumentation Laboratory at the Air Force Cambridge Research Laboratories (AFCRL) to develope a fully-operational superpressure vehicle for a wide variety of applications. Additionaly the flight served to a secondary study carried out by the AFCRL in the summer of 1962 of the spatial and temporal characteristics of minimum-wind fields in the lower stratosphere. The balloon trajectories served to illustrate the use of minimum-wind phenomena and helped to delineate some of the characteristics of the wind fields examined.

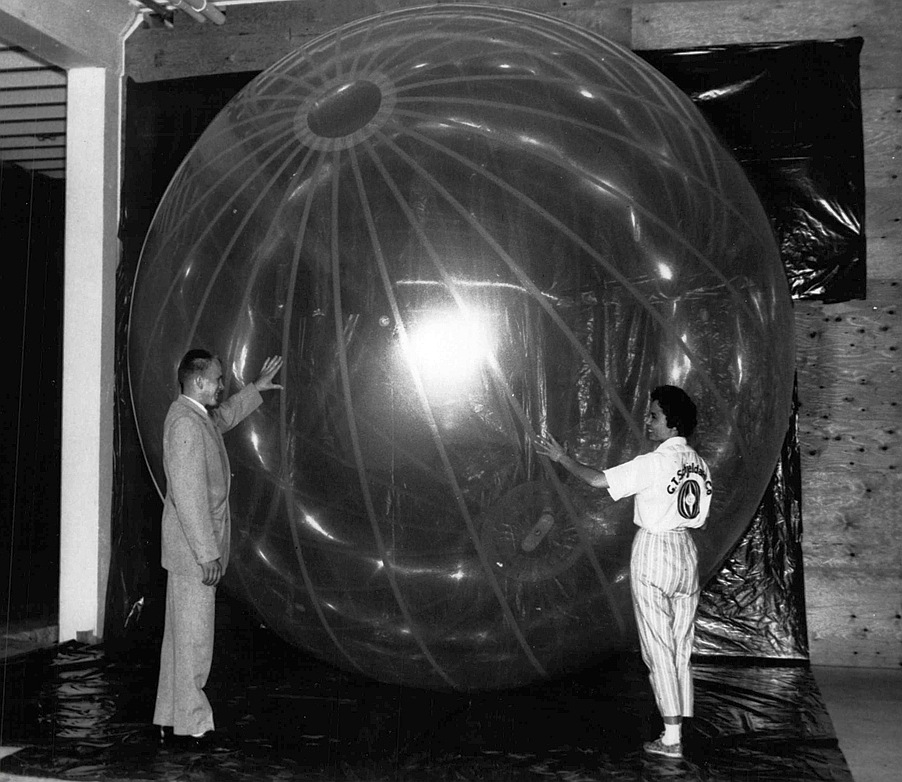

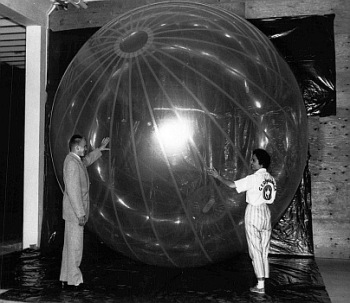

The superpressure balloon was formed by a closed envelope that maintained a constant altitude without expenditure of ballast. Key to the design of the balloon was that its internal pressure must exceed that of the surrounding air. In the image at left we can see one of such balloons fully inflated during an indoor test. The balloon was spherically shaped with a diameter of 34 ft. Construction was made by laminating two extremely thin Mylar films 1.5 microns thick. It carried a payload of 40 lb. and was designed to float at an altitude of 70,000 ft for several days. The balloon was fabricated by G.T. Schjeldahl Co.


Development of the superpressure balloons capable of flights lasting in excess of 30 days, as well as advances in the technology of high-altitude tethered balloons in the decade of 1960, generated considerable interest in the existence of parcels of air with relatively stable layers of minimum winds in the lower stratosphere, also known as minimum or zero wind fields. Minimum-wind fields are relevant to many high-altitude constant-level balloon applications: to free-floating balloons, whenever it is desirable to obtain maximum flight duration with minimum horizontal movement from a fixed geographic location; and to tethered-balloon systems, when the dynamic pressure upon the balloon should be minimum.

The study of which was part the present flight was limited to consideration of altitudes from 49,000 ft to 100,000 ft over the North American continent during the five months from 1 May 1962 through 30 September 1962. The data core of the study was information obtained daily at 12:00 GMT of upper-level wind speeds for each kilometer of altitude between 15 km and 29 km, taken at the meteorological stations across United States, Canada, Alaska, Mexico and the Atlantic ocean. The stations were chosen so as to most nearly obtain a series of observations along latitudes equidistantly spaced, from lat. 20º N to 65º N. With this data were obtained meridional cross sections of wind speeds averaged over either 10 or 11 day periods as a function of latitude and altitude that later were used to infer the general state of the minimum-wind layer in function of the month and the distribution and general characteristics of the minimum-wind level.

Details of the balloon flight

Balloon launched on: 4/26/1962 at 13:28 utc
Launch site: Chico Municipal Airport, California, US
Balloon launched by: Air Force Cambridge Research Laboratories (AFCRL)
Balloon manufacturer/size/composition: Super Pressure Balloon Mylar Laminate - 34 ft diameter
Flight identification number: P-26
End of flight (L for landing time, W for last contact, otherwise termination time): 5/6/1962 at 14:00 utc
Balloon flight duration (F: time at float only, otherwise total flight time in d:days / h:hours or m:minutes - ): 10 d
Landing site: Over southern Utah, US

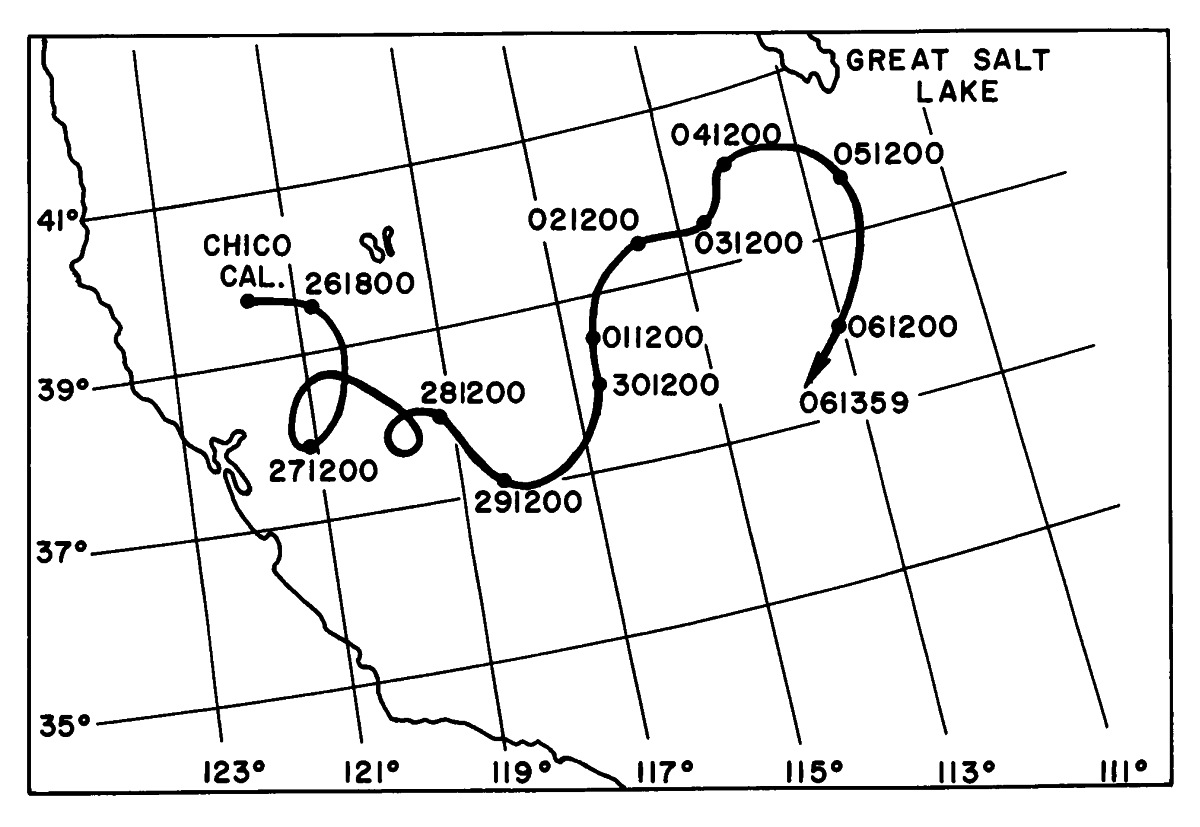

Flight P-26 was launched from the AFCRL Balloon Launch Site in Chico, California on April 26, 1962 at 13:28 utc. It endured ten days in flight after which was automatically terminated over Utah. During the flight, the balloon maintained a constant volume and consequently a constant altitude. This was achieved by inflating the balloon with additional gas to create an overpressure condition at floating altitude. At night the pressure in the balloon decreased due to the loss of radiative heating from the sun, but the volume of the non-extensible balloon remained the same. Data telemetered from the balloon throughout the flight indicated that the balloon could have continued its flight for a period considerably longer than the ten days.
