NEUTRON COUNTER

The objective of the flight was to measure atmospheric neutron intensities using a balloon-borne NEUTRON COUNTER designed by the Research Division of the College of Engineering of the New York University in the early 1950s. The instrument’s core consisted of two boron trifluoride (BF3) proportional counters, identical in construction and filled to the same gas pressure, but differing in isotopic composition. One counter contained isotopically enriched BF3 with a high proportion of boron-10 (10B), while the other contained isotopically depleted BF3. This configuration enabled neutron-induced events to be distinguished from background signals associated with cosmic-ray interactions and other sources.

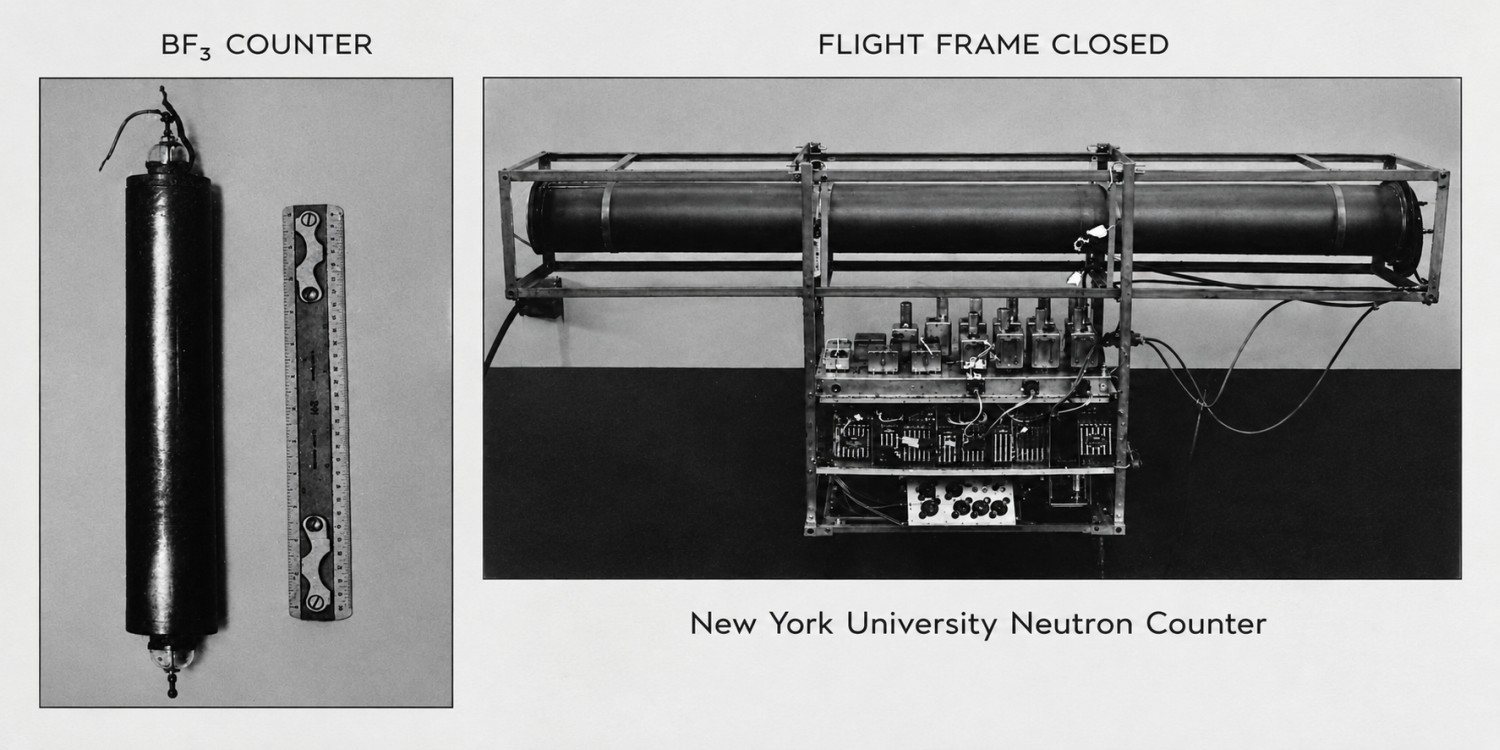

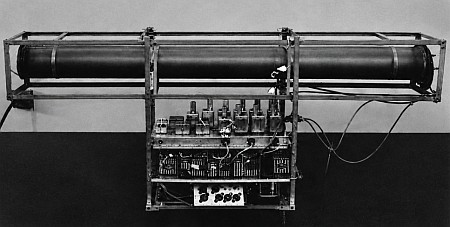

In the picture at left we can see one of the detectors in its container frame (click for more details). The detection principle was based on the interaction of neutrons with boron-10 nuclei in the BF3 gas. These interactions produced electrical pulses in the proportional counters, which were collected at the central wires. The outer cylinders were maintained at a high negative voltage, while the central wires operated near ground potential. The resulting pulses were transferred through hermetic electrical feedthroughs to the signal-processing electronics.

The two counters were connected to a switching system operated by a program motor and a cam-driven microswitch. This mechanism alternately connected each counter to the readout electronics for predetermined intervals. The switching system also generated distinct signals identifying the active counter, allowing measurements from both detectors to be distinguished in the transmitted data.

The electronic readout chain comprised a cathode-follower preamplifier, a two-stage resistance-coupled amplifier, a pulse-scaling circuit, and a trigger circuit. The preamplifier provided impedance matching between the proportional counters and the amplifier. The amplifier increased the pulse amplitude, while the scaling circuit reduced the pulse rate presented to the trigger stage. The trigger circuit actuated a blocking oscillator that modulated the radio transmitter, enabling the detection events to be recorded at ground stations. The transmitted signal was received and recorded using a radio receiver connected to a pen oscillograph.

The counters and high-voltage components were enclosed in a pressure-tight assembly to prevent corona discharges under the reduced atmospheric pressures encountered at high altitudes, which could otherwise produce spurious counts. The assembly incorporated sealed connections for the high-voltage and signal lines. The instrument was mounted on a welded aluminium flight frame, with the counters aligned longitudinally to minimize the solid angle subtended by one counter upon the other and to reduce the amount of scattering material above the detectors. The electronic components were individually mounted to facilitate replacement during field operations, and the circuitry was enclosed in copper screening to reduce external electrical interference.

Balloon launched on: 8/21/1952 at 10:52 EST
Launch site: USCGC Eastwind (WAGB 279) anclado en la Bahia de Baffin entre Groenlandia y el NE de Canada
Balloon launched by: General Mills Inc.
Balloon manufacturer/size/composition: Zero Pressure Balloon Winzen 73'
Flight identification number: GMI 951
End of flight (L for landing time, W for last contact, otherwise termination time): 8/21/1952
Landing site: Failed flight

During inflation a large tear across an entire gore and thus the balloon was cut loose without the payload. No scientific results obtained

• BalloonBorne Instrumentation for Neutron Detection Review of Scientific Instruments 21, 529 (1950)
• Final Report Project 85006 General Mills - 1953
• High Altitude Cosmic Ray Neutron Intensity Variations Prepared for Office of Naval Research, Nuclear Physics Branch, Washington, D.C., Contract No. N6 onr 279 TO 2
